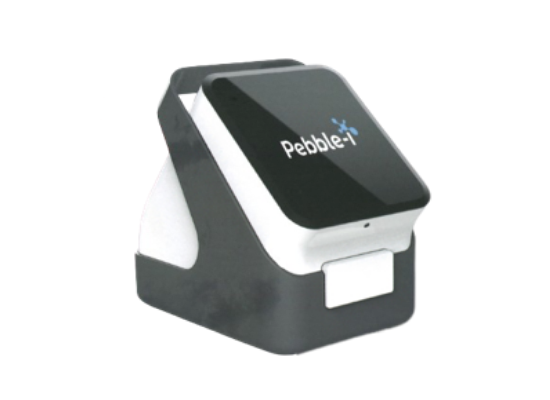

Q10

Clinical Chemistry Analyzer

Q10 Clinical Chemistry Analyzer is a diagnostic instrument that evaluates whether the condition of humans or animals is normal or abnormal by analyzing cartridges that react chemically or biochemically with metabolites present in blood, plasma, serum, and other body fluids through chemical or biochemical methods. Pebble-i's clinical chemistry analyzer is equipped with the latest technology that can accurately analyze multiple items simultaneously using various specimens, making it easy to perform tests even in diverse external environments.

Test Method

Optical Image Analysis Method

Key Features

  • High Performance & Compact Design

    High performance and compact design achieved through membrane filter and microfluidic methods

  • User-Friendly & Portable

    Enhanced usability and portability through film-based method, whole blood use without centrifugation

Specification

  • Principle​

    Absorbance spectrophotometry

  • Connectivity​

    HL7

  • LCD

    TFT LCD (touchscreen)

  • Battery​

    Rechargeable lithium-ion battery

  • Interface​

    2 USB ports / 1 ethernet port

  • Storage

    10,000 Results​

  • Printer​

    Built-in printer

  • Dimension​ (WHL)

    144 x 162 x 226 mm (3.0kg)

accunear

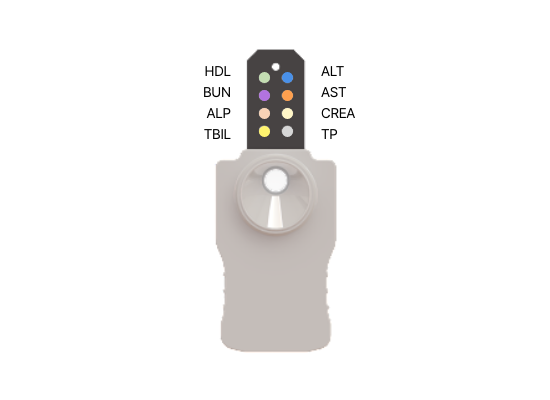

Q10

Clinical Chemistry Cartridge

Q10 Clinical Chemistry Cartridge is a test kit designed for chemical or biochemical reactions with metabolites present in human or animal blood, plasma, serum, and other body fluids, by pre-coating chemical reagents to enable reactions. Pebble-i's clinical chemistry cartridge allows for simultaneous multiplexing of various clinical chemistry reactions, enabling the measurement of multiple items in a short testing time.

Test Method

Chemical / Enzymatic Reaction

Key Features

  • Nanofilter Hematocrit Separation Technology
    • A rapid plasma separation technology suitable for completing tests within 10 minutes,
      meeting the requirements of on-site clinical examinations.
    • Shortened plasma separation time compared to conventional centrifugation methods,
      compact equipment size, and reduced power consumption due to the elimination of centrifugation.
    • Adjustable mesh and micro hole sizes of the filter enable the separation of blood cells
      from various animal species.
  • Dry Reagent Stabilization Technology
    • Composition technology where the 1st and 2nd reagent solutions are thinly coated
      on the upper and lower sides of the microfluidic chip, melting upon sample entry to initiate reactions.
    • Optimization technology adjusting the concentration of clinical chemistry reactions
      and colorimetric reagents to detect subtle changes in wavelength.

Available Test Items

  • GLU
  • ALT
  • Ca
  • Na
  • TG
  • ALP
  • ChE
  • PRG
  • BUN
  • CK
  • Mg
  • K
  • HCO3-
  • LDH
  • CRP
  • RPB
  • CREA
  • GGT
  • IP
  • Cl
  • T-Bil
  • AMY
  • SDMA
  • NH3
  • TC
  • ALB
  • NEFA
  • HDL-C
  • TBA
  • Lip
  • T4
  • Lac
  • AST
  • TP
  • BHBA
  • UA
  • FRA
  • GLDH
  • SAA
  • Gly
