BionDx .

accunear

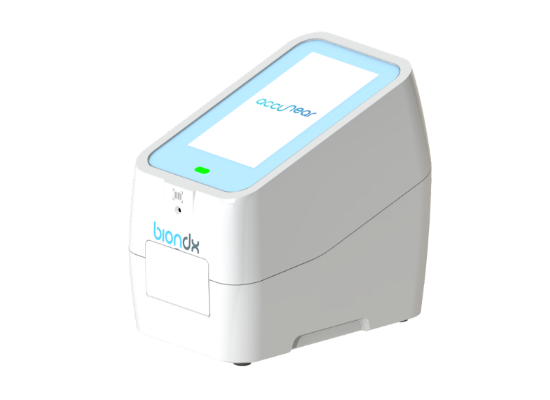

BionDx

Urinolgy/Immunochemistry Analyzer

BionDx Urinology/Immunoassay Analyzer is an automated or semi-automated device used in laboratories to analyze specific components and antigens or antibodies in body fluids or blood by reacting them and measuring the degree of light absorption through visible or ultraviolet radiation. It can also measure the chemical composition and physical properties of urine through photometric methods or particle pattern analysis.

Test Method

Colorimetry

Key Features

  • Simultaneous Urinology / Immunoassay Testing

    Urinary tract infection, proteinuria, diabetes, multiple myeloma, hypertension, etc.

  • User-friendly Interface

    Convenient color touchscreen for easy operation

  • Large Storage Capacity

    Stores up to 500 IDs and data for 200 controls per ID

  • Convenient and Safe Testing
    • Compact-sized analyzer with touchscreen minimizes space required for operation
    • Improved usability for operators with easy-to-use interface and large storage capacity

Specification

  • Principle

    Colorimetry

  • Connectivity​

    HL7, ASTM​

  • LCD

    Color LCD(IPS, 7”)
    with touch interface​

  • Battery​

    Rechargeable lithium-ion battery
    (3000 mAh)

  • Interface​

    USB 2.0 x3, ethernet, Wi-Fi,
    bluetooth

  • Storage

    50,000 Results

  • Printer

    External (Wi-Fi / bluetooth)

  • Dimension (WHL)

    160 x 240 x 230mm (2.5kg)
